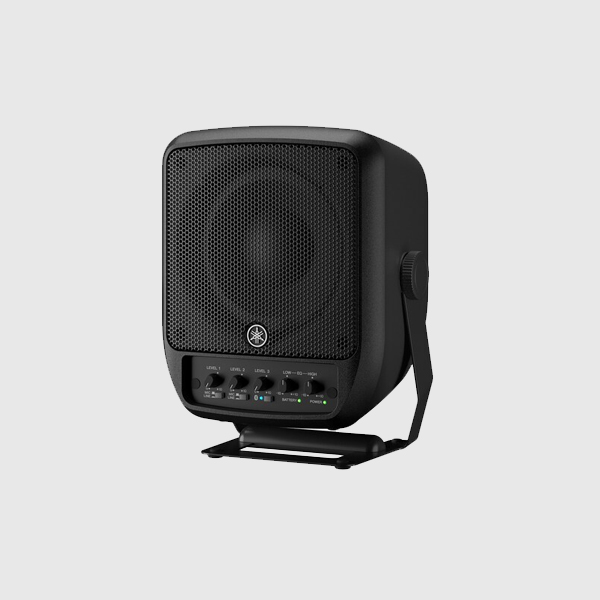

STAGEPAS 100BTR

Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery

  • 100 W Class-D amplifier
  • 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
  • 3-channel mixer (2 monaural mic/line + 1 line)
  • Equipped with a 2-band master EQ
  • Compatible with Hi-Z input (Channel 2 only)
  • Equipped with mix-out
  • Carrying handle doubles as an adjustable stand
  • Compatible with audio accompaniment over Bluetooth
  • Optional carrying bag (BAG-STP100) available for convenient transport
  • Internal lithium-ion battery

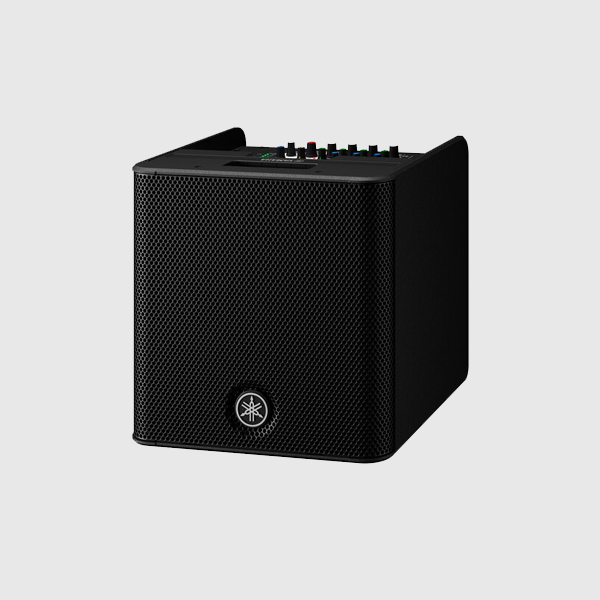

STAGEPAS 200BTR

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out
  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Optional BTR-STP200 battery included
  • Optional CASE-STP200 carry case for convenient carrying

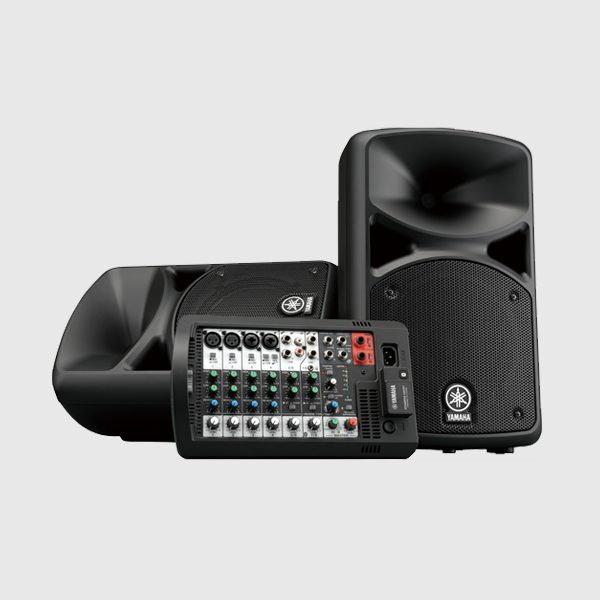

STAGEPAS 400BT

400-watt, portable PA system with 8-channel powered mixer, two 8″ speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

  • 400W (200W + 200W) power output
  • High quality speakers (LF:8″ woofer/ HF:1″ voice coil compression driver)
  • Detachable 8-channel mixer (4 mono/line + 4 mono / 2 stereo line)
  • Bluetooth® audio streaming
  • 1-Knob Master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 2-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

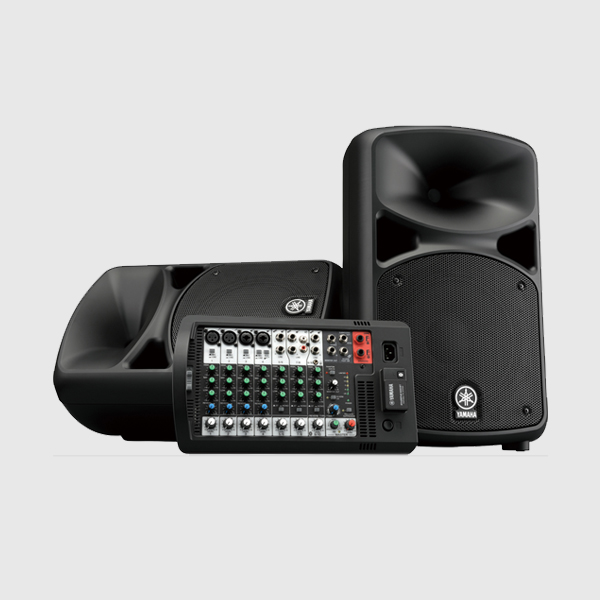

STAGEPAS 600BT

680-watt, portable PA system with 10-channel powered mixer, two 10″ speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

  • 680W (340W + 340W) power output
  • High quality speakers (LF:10″ woofer/ HF:1.4″ voice coil compression driver)
  • Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
  • Bluetooth® audio streaming
  • 1-Knob Master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 3-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

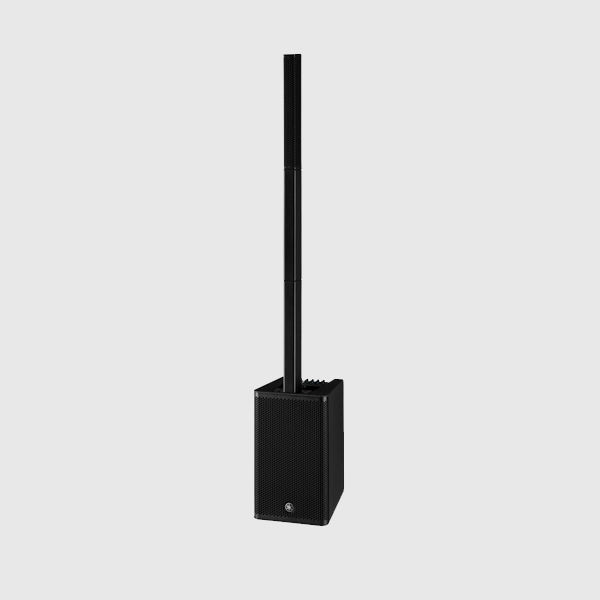

STAGEPAS 1K mkII

1100W, 125 dB SPL peak@1m, portable PA system with 5 channel digital mixer, 12-inch subwoofer, 1.5-inch x10 line array speaker, a Bluetooth input, SPX digital reverbs, Priority Ducker and 1knob EQ and multi band comp for master output.

  • 1100W power output
  • Biggest in the class 12-inch subwoofer for low frequency
  • 1.5-inch x10 slim line array speaker for high frequency
  • Digital mixer (3 mono mic/line + 1 stereo line)
  • Multi band comp “MODE” for master output
  • 1-knob EQ per channel
  • High resolution SPX digital reverb (4 types, parameter control)
  • Priority Ducker for stereo channel
  • 4 band PEQ per channel via remote control APP “STAEGPAS Controller”
  • 2x Hi-Z (high impedance) inputs
  • Link out and monitor out
  • Dedicated cover included
  • Optional reverb foot switch (FC5)
  • Optional dolly (DL-SP1K) for more portability
