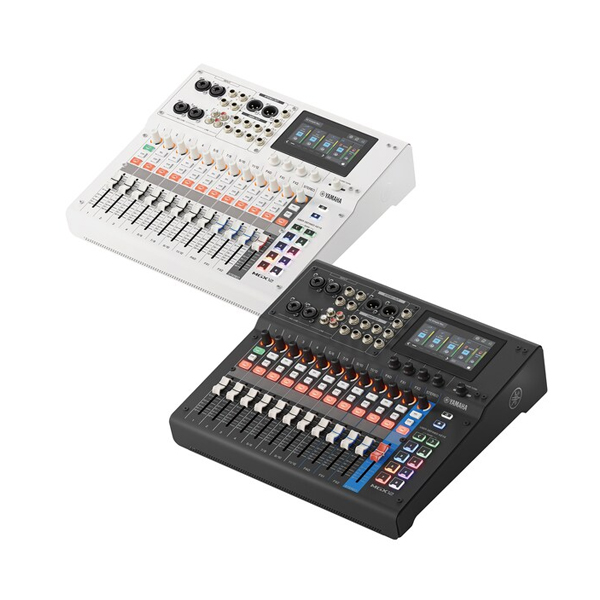

MGX 12

The portable MGX12 compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX12 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

  • 11 + 1 fader configuration (non-motorized fader)
  • A 4.3-inch touchscreen with five control knobs
  • Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
  • Busses: 1 STEREO + 8 MIX

  • Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
  • Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
  • USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
  • USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
  • microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
  • Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
  • Built-in DSP processor for professional sound and latency-free monitoring
  • Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
  • Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

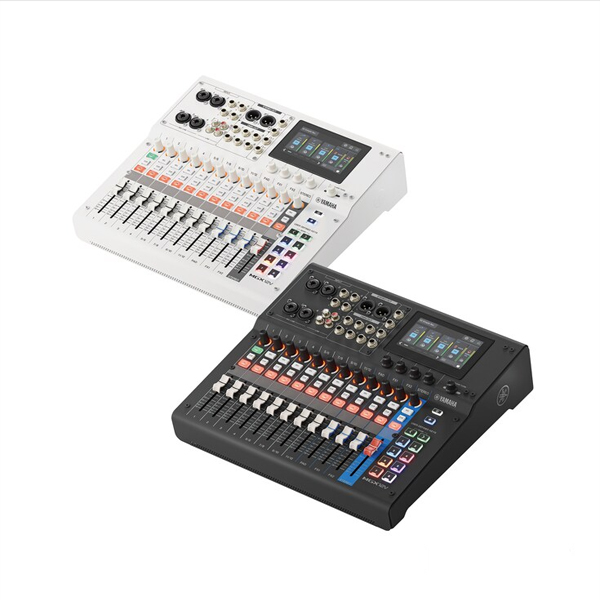

MGX12V

The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

  • 11 + 1 fader configuration (non-motorized fader)
  • A 4.3-inch touchscreen with five control knobs
  • Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
  • Busses: 1 STEREO + 8 MIX
  • Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
  • Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
  • USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
  • USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
  • microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
  • Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
  • HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
  • Built-in DSP processor for professional sound and latency-free monitoring
  • Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
  • Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

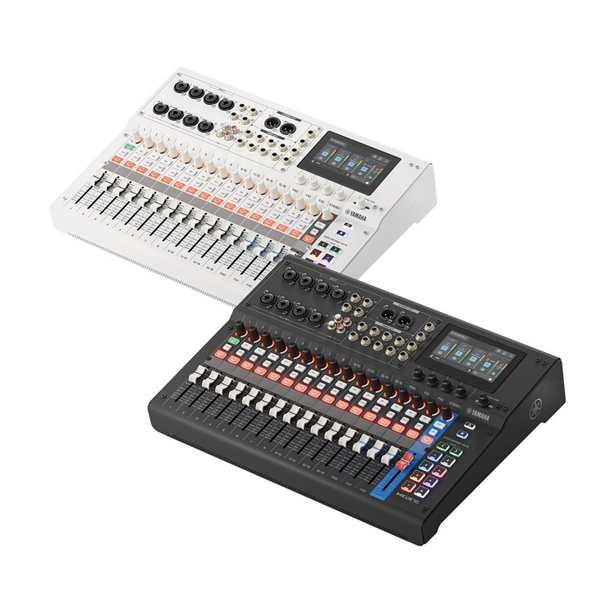

MGX16

The portable MGX16 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The MGX16 offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

  • 15 + 1 fader configuration (non-motorized fader)
  • A 4.3-inch touchscreen with five control knobs
  • Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return

  • Busses: 1 STEREO + 8 MIX
  • Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
  • Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
  • USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
  • USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
  • microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
  • Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
  • Built-in DSP processor for professional sound and latency-free monitoring
  • Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
  • Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

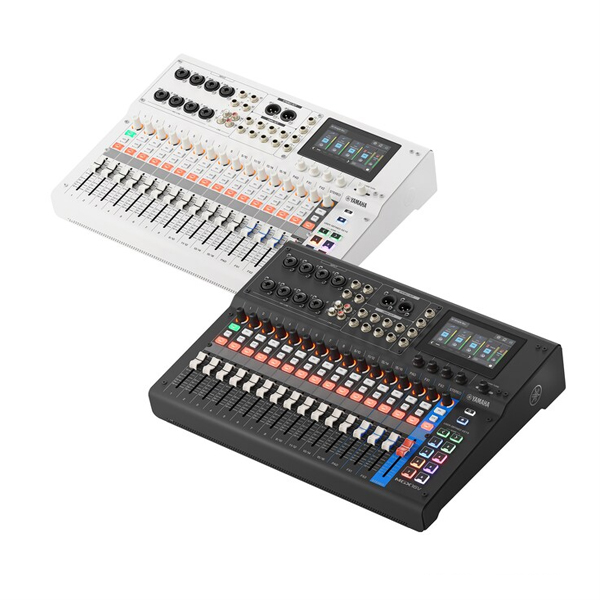

MGX16V

The MGX16V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX16V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

  • 15 + 1 fader configuration (non-motorized fader)
  • A 4.3-inch touchscreen with five control knobs
  • Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
  • Busses: 1 STEREO + 8 MIX
  • Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
  • Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
  • USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
  • USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
  • microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
  • Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
  • HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
  • Built-in DSP processor for professional sound and latency-free monitoring
  • Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
  • Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
